Usability-focused Multi-GPU Compression

Project completed — UMUGUC ran from September 2023 to August 2026. This page presents the final results, publications and tooling produced by the project.
Public artifacts:
Celerity UMUGUC version Tooling repository Publications & Talks

Background

High-performance data compression can alleviate capacity bottlenecks and even improve performance in GPU compute applications, by reducing memory bandwidth requirements. However, integrating compression throughout the entire data processing pipeline is a non-trivial task, especially in multi-GPU environments, and doing so manually tends to bake in assumptions that make it difficult to experiment with different compression methods, particularly domain-specific ones that exploit the structure of a specific kind of data.

The research project UMUGUC set out to make such compression methods easy to use in multi-GPU cluster applications, without requiring application developers to write any compression-specific code, and without requiring compression-algorithm developers to deal with the complexities of distributed execution, data movement, or synchronization.

The basic goal is simple:
Make it easy to work with end-to-end compressed (dense) data in multi-GPU programs — including custom, domain-specific compression algorithms.

The project builds on the Celerity runtime system, which provides a high-level C++ programming model for distributed-memory clusters of GPUs. Celerity itself layers on top of the Khronos SYCL standard, ensuring portability across different GPU vendors and architectures.

Overview

UMUGUC's main contribution is a user-facing API design and its implementation, built on top of Celerity's existing buffer/accessor programming model. It has two sides, targeting two different audiences: application developers and compression algorithm developers.

On the application side, a program simply declares a buffer as compressed<...> and then accesses it exactly like an uncompressed one — no compression-specific code required. On the compression-developer side, a small, typed interface lets someone implement a new compression algorithm, including domain-specific ones, without having to deal with Celerity's distributed execution, data movement, or synchronization at all.

As part of this work, we introduced a classification of compression methods into four compression categories, based on where in the GPU memory hierarchy (de)compression happens; this categorization is an integral part of the API design and is illustrated below: element-wise compression of individual values, local-memory and global-memory compression of whole tiles/chunks of data, and traditional, application-level kernel compression using a dedicated compression pass. UMUGUC implements runtime support for the first three of these categories; kernel compression is simply the conventional way of doing things without any special runtime support, requires no additional infrastructure, and is shown below only for context.

Schematic illustration of the four compression categories devised by the project: element-wise, local-memory and global-memory compression, all implemented by the Celerity runtime extension, alongside traditional kernel compression which is shown for context but not implemented as part of the runtime

On the compression-developer side, algorithms can also declare auxiliary buffers or per-tile metadata they need — which is often the case for domain-specific methods. A compression method is expressed as a wrapper bundling (i) the numerical compress/decompress logic and (ii) a dependency_bundle describing any auxiliary buffers it needs, along with how those buffers should be distributed relative to the compressed data. Given just this wrapper, Celerity automatically reserves the compressed and auxiliary buffers, distributes them across GPUs and nodes, and routes execution to the right compression code, as seen below.

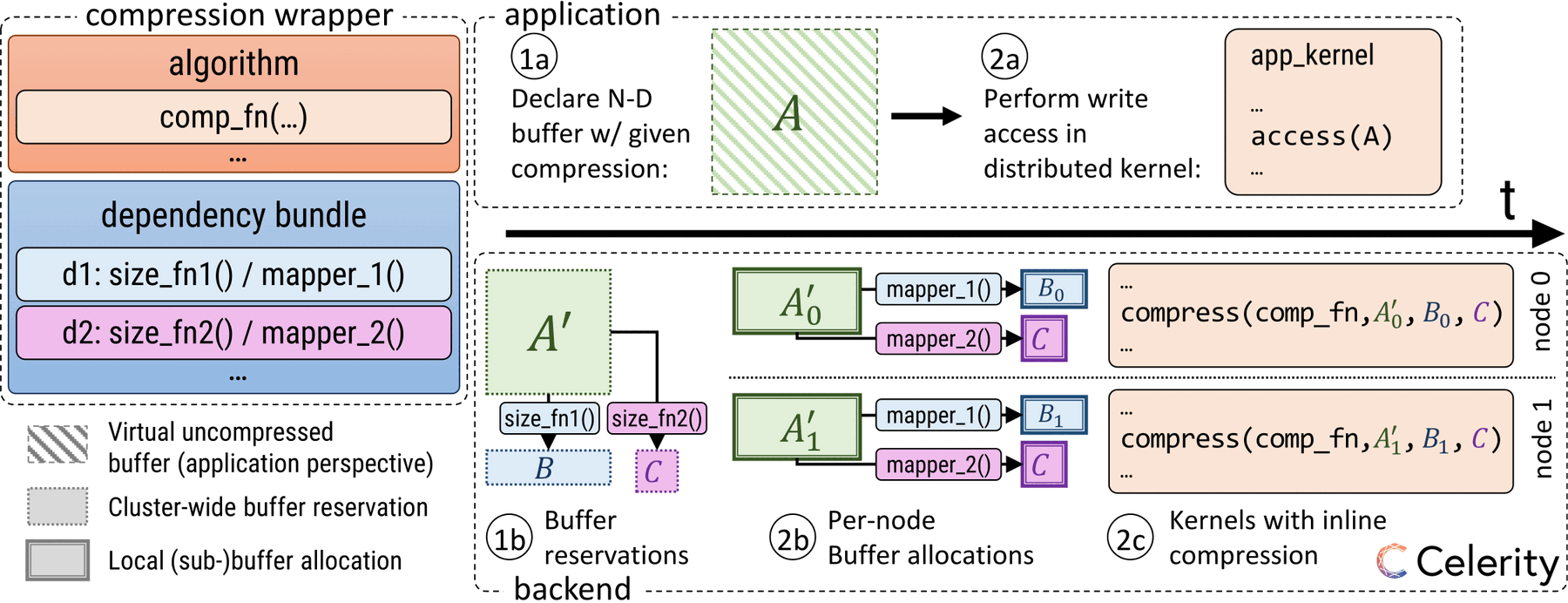

Diagram showing a user-defined compression wrapper (algorithm plus dependency bundle) on the left, application code declaring and accessing a compressed buffer on the top, and the resulting per-node buffer reservations, allocations and inline compression performed by the Celerity runtime on the bottom

A user-defined compression bundle (left) is used to declare a compressed buffer (top); the runtime then reserves, distributes and populates the compressed buffer together with its auxiliary dependency buffers across GPUs and nodes (bottom).

Example: Z-Curve Point Cloud Compression

As a representative domain-specific algorithm, the project implemented z-curve compression for 3D point clouds, such as those produced by airborne LIDAR scanning. Points are quantized onto a 2D z-curve (a space-filling curve that preserves locality) within each grid cell, so that the X/Y position collapses into a single Morton-encoded index; the remaining Z-offset is stored separately as a half-precision value in an auxiliary dependency buffer.

Illustration of z-curve compression: point positions in a 3D grid cell are encoded as a z-curve index on the X-Y plane plus a Z-coordinate offset

Implementing this — and any other — domain-specific algorithm with the new API only requires two things: a small wrapper exposing the compression object and its dependencies, and the compress/decompress logic itself. Everything else, including allocation, distribution and synchronization of the auxiliary Z-offset buffer, is handled by the runtime:

using compression_t = z_curve_compression<Point, uint32_t, category::local_memory>;
compression_t z_curve{Point{x_min, y_min, 0}, xy_resolution};

// Compressed buffer instead of a regular one - same buffer/accessor API otherwise.
celerity::buffer<Point, 3, compression_t>
    tile_points({width, height, points_per_tile}, z_curve);

queue.submit([&](handler& cgh) {
    accessor tile_point_acc{tile_points, cgh, full_third_dim<3>{}, read_only};
    ... // kernel code accesses tile_point_acc exactly like an uncompressed buffer
});

Evaluation & Scope

The API was evaluated by implementing several element-wise, local-memory and global-memory compression methods — including the z-curve algorithm above and other domain-specific and quantization-based techniques — on three GPU-cluster benchmarks (airborne point cloud processing, a wave simulation, and a room-response simulation) across three different hardware platforms.

The design does have limits: compression logic must be expressible on the GPU, it primarily targets fixed-size (rather than e.g. entropy-coded) compression schemes, and writing a dependency's range mapper still requires understanding the algorithm's access pattern in detail.

Example Result: Point Cloud Pipeline

Of the three benchmarks, the airborne point cloud pipeline is shown here as an example. The figure below compares all compressed variants against the uncompressed baseline on 1, 2 and 4 GPUs.

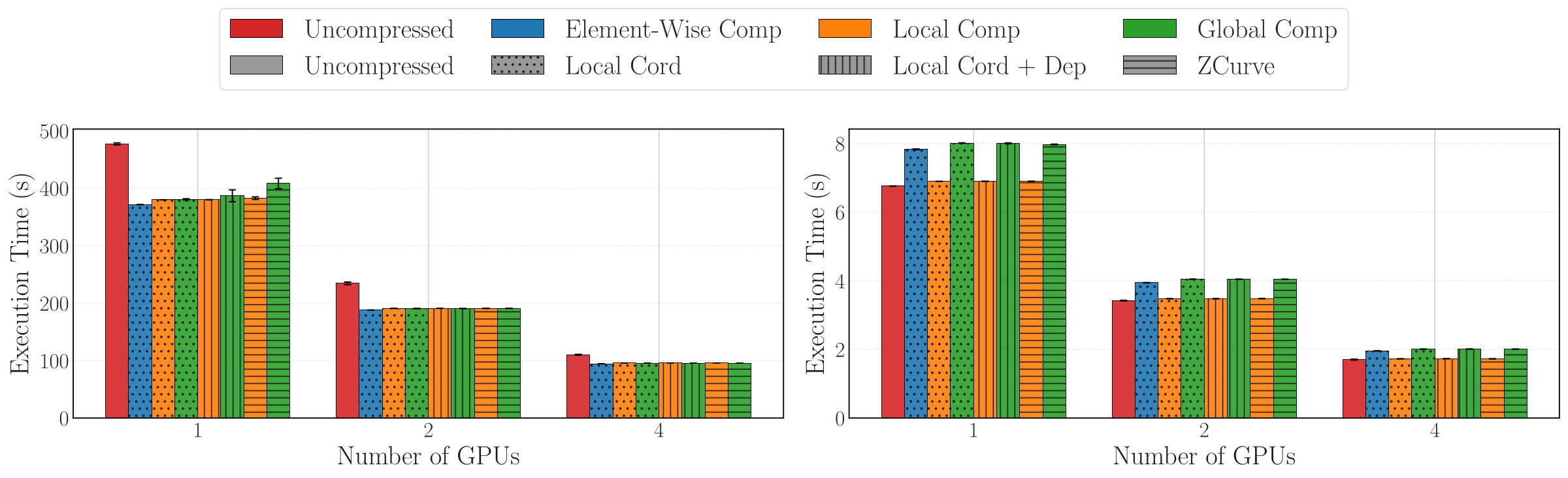

Two bar charts of execution time over 1, 2 and 4 GPUs. Left, tiling: all compressed variants take roughly 370 to 410 seconds on one GPU versus about 475 seconds uncompressed, and all variants scale down to about 95 to 110 seconds on four GPUs. Right, shape factor computation: times range from about 6.8 seconds uncompressed to 8 seconds for the slowest compressed variants on one GPU, scaling to about 2 seconds on four GPUs.

Execution time of the tiling stage (left) and the shape-factor computation (right) for each compression category (color) and algorithm (pattern).

In the tiling stage, which sorts points into spatial tiles, every compressed variant runs around 15–20% faster than the uncompressed version. In the shape-factor stage, which analyses how points are distributed in close proximity, local-memory compression matches the uncompressed version, while the other categories add an overhead of up to about 18%. However, this stage takes only a few seconds compared to hundreds for tiling, so the overhead is negligible and the pipeline as a whole runs faster with compression. All variants scale well across multiple GPUs, without any compression-specific code in the application.

The results for the wave and room-response simulations, the other hardware platforms and the achieved memory savings are presented in the papers and talks listed under Publications & Talks below.

Technology

UMUGUC was built on top of the Celerity runtime system, which provides a high-level programming model for distributed-memory clusters of GPUs. Celerity is built on top of the Khronos SYCL standard, and provides a data-parallel multi-GPU programming model with a single-source C++ interface. The UMUGUC project extended Celerity with the necessary abstractions to support end-to-end, domain-specific data compression.

Celerity Logo SYCL Logo

Celerity Releases During the Project

Alongside the compression work, Celerity itself evolved from version 0.4.0 to 0.7.1 over the course of the project. These releases brought important improvements to the underlying runtime, most of which were essential for the UMUGUC project:

Tooling

Alongside the API and its evaluation, the project produced a small set of supporting command-line and GUI tools, released separately in the umuguc/tooling repository:

Both tools are self-contained CMake projects; see the repository's README for build instructions and usage details.

Publications & Talks

Partners & Funding

UMUGUC was funded by the Austrian Research Promotion Agency (FFG) under the BRIDGE programme, running from September 2023 to August 2026.

The project partners were the University of Innsbruck, and AirborneHydroMapping GmbH.
UMUGUC was coordinated by Peter Thoman.

University of Innsbruck logo AirborneHydroMapping GmbH logo
